Auto Disposable Face Mask Machine , Disposable Face Mask Manufacturing Machine

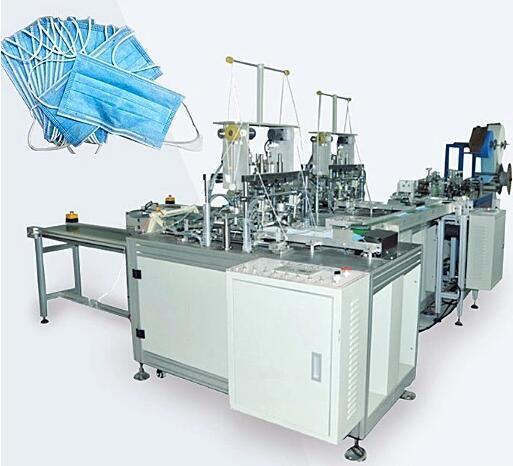

The mask making machine is used to fully automated make flat masks with with size 175*95mm. The main production process flow is coil material feeding, nose bridge tendon feeding, folding and pressing, mask cutting and forming, ear band feeding and welding, and finished product unloading. Automatically completes production from raw materials to finished masks. The produced masks are comfortable to wear, no pressure, good filtering effect of the masks, fit the human face, and can be used in medical, electronics, mining, construction and other industries.
| Control system power |
1 Phase 220V / 50HZ |
| Air Pressure |
0.6Mpa |
| Power supply |
110V~380V/50Hz/60Hz |
| servo motor |
Domestic quality |
| Control System |
PLC |
| sensor |
Omron, Seak |
| Pneumatic Components |
SMC Yadek |
| Operation screen |
10 inch capacitive screen |
| Bearing |
NSK |
| Lead screw |
Hiwin |
| Security |
Safety light grid |
| Equipment structure |
2 ply |
| equipment power |
3KW |
| equipment weight |
600kg |
| Driven |
Ordinary motor + servo |
| Number of applicable layers |
3-layer |
| Applicable materials |
PP, non-woven fabric, synthetic fiber |
| Processing methods |
Ultrasonic welding |
| Finished product specifications |
175*95mm |
| Technical characteristics |
|
1. Three layers of fabric are automatically aligned and feed, and weilding sys use ultrasonic waves are continuously pressed.
2. The production line adopts the structure of 2 ply, with high production efficiency
3. Nose clips and ear loop are automatically cut and welded by ultrasound
4. Automatic counting and palletizing after welding earbands |
Plane Mask Production Process:
1) Three layers of non-woven fabric materials are stacked together through a machine
2) Roll up and stitch the nose clip into it
3) Make a large piece of non-woven fabric gradually narrow from left to right along the slope to make a "folding structure"
4) Tableting: flatten the surface of the mask
5) Fully automatic single cutting and hemming of masks
6) Then use a non-woven fabric to trim the mask
7) Cut the edge again
8) Fix the hanging ear rope by hot pressing
9) Finally pass the quality inspection, sterilize and package the finished product
| tion and commissioning. |
Due to the special period, party A(Supplier) is unable to provide on-site installation and debugging service. After installation and debugging, party A(Supplier) shall notify party B(Buyer) to accept the equipment. Upon completion of acceptance, party B(Buyer) should ship the whole machine.Provide non - contact installation instruction such as instructional video and remote video instruction. Non-epidemic period, We will send 1~2 engineer for installation, training and testing in customers' factory, offer complete technical support, after-sale service, maintenance skills training. The air ticket, hotel and food accommodation shall be offered by the buyer and need to pay 100 USD/day/person as technical fee. |
| Warranty period and service |
- During the warranty period, if it is a product quality problem, the supplier shall be responsible for the maintenance and provide the maintenance accessories (vulnerable parts, such as ultrasonic waves and mufflers, force majeure or the buyer's reason for the equipment damage, it does not belong to the quality warranty scope).If the equipment is damaged due to the buyer's fault, the maintenance fee shall be borne by the buyer.
- If the buyer USES repair services or replacement parts not provided by the supplier or approved by the supplier, the warranty period will be suspended in advance.
|
| Delivery time |
30 days |
